Planning Help for Garden Bed Irrigation


Example Plans

Click Plan to expand:

Plan 1

Plan 2

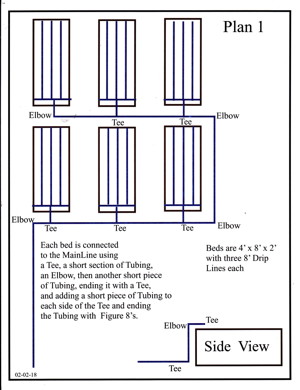

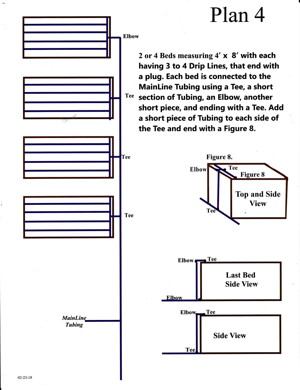

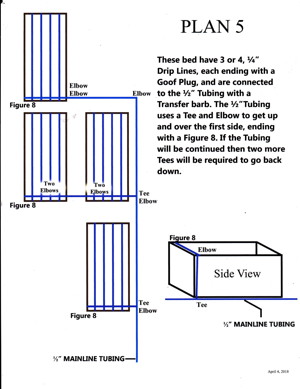

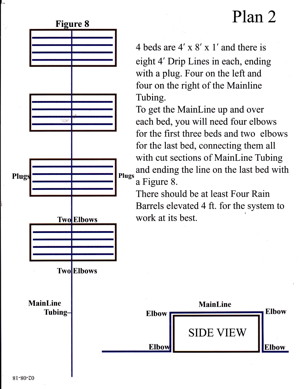

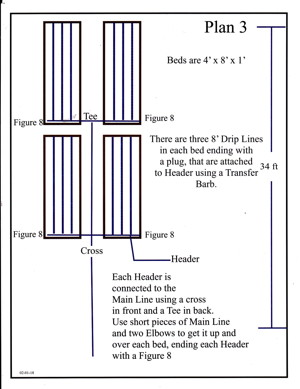

On the left and below are five plans for Garden Bed Irrigation showing example layouts of Mainline Tubing and Soaker Drip Lines, using tees and elbows with raised beds. You may also find these plans to be beneficial when not using raised beds. The only difference would be fewer needed parts.

To Receive Help and a Free Quote:

1. Using these plans as a model, draw your proposed layout and indicate where you want to run the Mainline Tubing.

a. Show all measurements
b. Number of beds
c. Type of beds - raised or in ground

2. Describe your current rain harvesting system.

a. Number of barrels used and capacity
b. Height of stands or platforms
c. Spigot type: standard or ball valve
d. Type of setup: inline diverter, first flush, direct, rain chain
, etc.

3. Indicate your water source.

a. Roof, spring, well, garden hose

4. Email your sketch to watrhrvstr@gmail.com or mail to:

John Elliotte
8527 N. Decatur St. # 7
Portland OR 97203

Please note the best time(s) to call, if this is your preference.

After we receive your sketch, we can discuss, via email and/or phone, which kit would work best for your setup, extra parts needed, how high your barrel(s) should be, what timer to use, etc.

Remember, the more description you include, the easier it will be for us to help with your setup and design.

When you are ready to order, please go to the Ordering page, read the Shipping Information section, then fill out the ordering form below it.
