The Rainbarrel Man - Garden Irrigation System

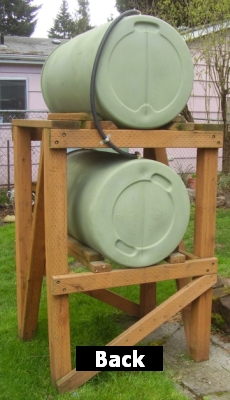

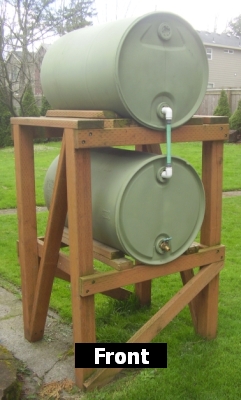

This 110 Gal. system can use the, 1/2 inch PVC plumbing with a quarter turn ball valve and includes an inline disconnect union for easy removal or a 5/8 inch dia. hose connection with a brass spigot. The top drum is mounted on a 54 inch high stand which gives the height needed to produce the 2 psi required to operate the drip irrigation kit when attached. If you use all the material in the kit it will water a 100 sq. ft. vegetable garden (ten - 10 foot rows or five - 20 foot rows). Without the kit the system will produce 10 Gpm, with it attached that figure will be greatly reduced.

This system includes: The Drums Stand, Drip Kit, Plumbing and Watersaver Diverter.

$320.00 w/ hose connection and brass spigot (drums not painted)

$370.00 w/ 1/2" PVC plumbing and Painted drums

The drip irrigation kit includes:

The Garden Irrigation System

This 110 Gal. system can use the, 1/2 inch PVC plumbing with a quarter turn ball valve and includes an inline disconnect union for easy removal or a 5/8 inch dia. hose connection with a brass spigot. The top drum is mounted on a 54 inch high stand which gives the height needed to produce the 2 psi required to operate the drip irrigation kit when attached. If you use all the material in the kit it will water a 100 sq. ft. vegetable garden (ten - 10 foot rows or five - 20 foot rows). Without the kit the system will produce 10 Gpm, with it attached that figure will be greatly reduced. This system includes: The Drums Stand, Drip Kit, Plumbing and Watersaver Diverter. $320.00 w/ hose connection and brass spigot (drums not painted) $370.00 w/ 1/2" PVC plumbing and Painted drums The drip irrigation kit includes:

	1- Filter 1- Female hose coupler 1-50 foot roll main line tubing 1-Tee 2-Figure 8 ends 1-Key punch 10-Goof plugs		20-Stakes 1-100 foot roll of T-tape 10-Barbs 10-Grip sleeve ends 2-Repair couplers 2-Elbows Dripworks catalog
Benefits of watering with drip irrigation: Uses 50% less water Delivers water directly to the root zone Reduces evaporation and run-off Does not wash off nutrients, protectants or pollen Saves time, wasted on hand watering Makes gardening much more enjoyable Special note: This system should be drained with spigot and valves in the open position, in preparation for a cold snap.
